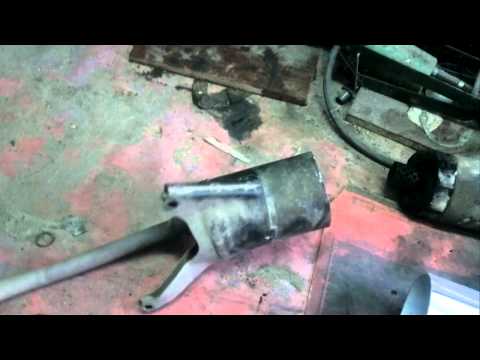

Watch the video

How to make forward flow?

Some motorists resort to tuning their iron friend. Many of them are not averse to giving the car a roaring sporty sound. In this case, help straight-through muffler. How to make forward flow - the topic of today's article.

How to make forward flow with their own hands

Materials and tools

  • two metal flanges (outer diameter - 13 centimeters, inner - 4 centimeters);
  • metal pipe with a diameter of 13 centimeters;
  • metal pipe with a diameter of 4 centimeters;
  • heat-insulating and fireproof piece of fabric;
  • glass wool;
  • tip;
  • drill;
  • welding machine.

The process of manufacturing straight-through muffler

  1. Take a pipe with a diameter of four centimeters and with a drill make holes in it every two to three centimeters. Start making holes by measuring six centimeters from the beginning of the pipe and leaving six centimeters to the end of the pipe.
  2. Put the flanges on the pipe on both sides and weld them with a welding machine.
  3. Wrap the remaining pipe surface with a piece of refractory fabric.
  4. Next, tightly wrap the pipe glass wool.
  5. Insert the prepared pipe into the second pipe of a larger diameter.
  6. Make the resulting structure with a welding machine.
  7. Put the tip on the end of the pipe.

How to convert an old muffler into forward flow

Materials and tools

  • metal pipe with a diameter of 5 centimeters;
  • metal pipe 0.5 meters long;
  • angle grinder;
  • disks for cutting on metal;
  • welding machine;
  • drill;
  • Iron sponges for washing dishes - 50 pieces.

The process of remaking the muffler

  1. Remove the old muffler from your car.
  2. Using a grinder, cut a hole in the resonator along the entire length.
  3. Next, cut out the components of the resonator (stiffening ribs and two tubes). Cutting the pipes, leave three centimeters on each side to make it easier to weld the new pipe.
  4. Saw the prepared metal pipe to the desired size.
  5. Using a drill or an angle grinder, make holes in the pipe every two to three centimeters.
  6. Using a welding machine, weld the pipe to the remains of the cut pipes in the resonator.
  7. Hammer the space with metal jaws.
  8. Weld the cut off cover back from the resonator.
  9. Cut off part of the muffler (from the resonator to the point of exhaust gases).
  10. The second piece of pipe (0.5 meters long) must be welded to the cut-off place.
  11. Before installing a new muffler, it must be cleaned and painted.

If you want a very loud and low sound muffler, then do forward flow with your own hands. The second method (alteration of the old muffler) allows you to improve the sound of the car, while the sound will be softer.

When replacing the muffler on the direct-flow system will increase the power of the car. True, the increase in horsepower will be small (usually up to ten).

How to remake the old muffler in co-current for a scooter

Materials and tools

  • two metal pipes of different diameter;
  • glass wool;
  • angle grinder;
  • welding machine.

The process of remaking the muffler for a scooter

  1. Remove the old muffler from your car.
  2. Using a grinder, cut a hole in the resonator along the entire length.
  3. Next, cut out the components of the resonator (stiffening ribs and two tubes).Cutting the pipes, leave three centimeters on each side to make it easier to weld the new pipe.
  4. Wrap the prepared pipe of smaller diameter with glass wool.
  5. Insert the coiled pipe into the second pipe with a larger diameter.
  6. Carefully weld the new pipe with a welding machine.

The received direct-flow engine can be installed both on the scooter, and on the motorcycle or the moped. When creating a direct flow for a two-wheeled vehicle, it is very important to perform a high-quality welding, since the glass wool should not get wet during wet weather. Otherwise, the material will not be able to dry naturally and the engine will lose its properties.

It is worth noting that the increase in engine power on a scooter or motorcycle after installing forward flow is felt to a greater extent. Even if a small amount of horsepower is added, you will certainly notice that your iron horse has become more frisky.

In our article How to make a silencer you will learn about the technique of creating a silencer with your own hands. The author of the article will tell you what tools and materials will be needed for this, as well as give advice on how to make a quiet silencer.
